Well Cement Tool
Rugao Yaou Company is one of the noted well cement tool manufacturers in China. We have been awarded the certificate of the American Petroleum Institute (API) and have established long-term relationships with more than 300 API certified manufacturers. This allows us to provide reliable well cement tools at lower prices. Some of our popular well cement tools include float shoes, float collars, cement heads, casing centralizers, casing packers, and cement plug. These tools can be used for well cementing of various kinds of wells.
- Float Shoe, Float Collar of Well Cement Tool
1. High strength design, ensures high pressure bump and back flow resistance;
2. Withstands long period of circulation;
3. Automatic fill-up, greatly saves running-in time of casing;
4. Easy drill out with PDC bits;
Specifications of Float Shoe, Float Collar
Casing Size OD Length Connection 7" Ф194.5 535 7LCSG 7" Ф194.5 535 7 BCSG 9-5/8" Ф270.0 550 9-5/8 BCSG 13-3/8" Ф365.0 550 13-3/8 BCSG
- Cement Head of Well Cement Tool
Our casing cement head with double plug is a common cementing tool used as wellhead unit in various cementing operations. Compared with a cement head with single plug, it has longer cement head body, and its upper rubber plug and lower rubber plug can be put in at the same time. Our cement head is flexible in connecting, and has the advantage of simple structure, easy operation, and high pressure resistance. Additionally, the lever type indicator equipped can show whether rubber plug goes through double plug cement head to enter casing.
The common adopted sizes are 5-1/2", 7", 9-5/8", 13-3/8", which are based on the sizes of casing.
- Casing Centralizer of Well Cement Tool

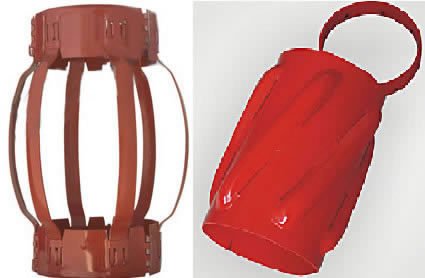

A casing centralizer is an auxiliary tool for casing operations. It is clamped on casing outside to protect it from wellbore damages and reduce the friction. We have two types of casing centralizers: bow-spring centralizers and solid centralizers (some are installed with rollers). The size of our casing centralizers is based on relevant casing size, from 4-1/2" to 20".
- Casing Packer of Well Cement Tool
Our casing packer is a mechanical type well cement tool. It is supplied with positive setting and unsetting, convenient to operate. Lower the tubing while rotating the tubing, and the track pins will slip into the elongated slot from the shorter one. Consequently relative movement occurs between slips and wedge surface of the cone, and opened slips will couple with the casing entire tightly to realize anchoring. Meanwhile, part of set-down weight makes the rubber tube in compression axially and in tension radially, thereby sealing the annulus space between the tubing and the casing. To unset, pick up the tubing.
Our casing packer combined with supporting equipments can achieve separated well testing, oil recovery, water detection, water plugging, oil pumping by intensifier pump, fracturing etc.
- Cement Plug of Well Cement Tool
Our cement plugs include top plugs and bottom plugs. They are of non-rotational design, allowing the plugs to drill out quickly. Special materials are used for easy drill out with PDC bits. In addition, our cementing plugs are resistant to high temperature and high pressure.
Specifications of Cement Plug
SIZE OF CASING D1/D2 H1/H2 Type 5-1/2" Ф134 250 Rotary 7" Ф170 300/275 9-5/8" Ф234 274 Non-rotary 13-3/8" Ф325 355
Rugao Yaou Company is a Chinese oil drilling equipment manufacturer. With years of experience and our continued efforts, we are able to provide a great variety of petroleum equipment, including oil drilling tools, solid control equipment, workover tools, as well as oil production tools and drill rig parts. Due to their safety and durability, our products are well received by our customers at home and abroad.
Please let us know if you have a need for any of well cement tools. We are sure that you will be satisfied with our products.
